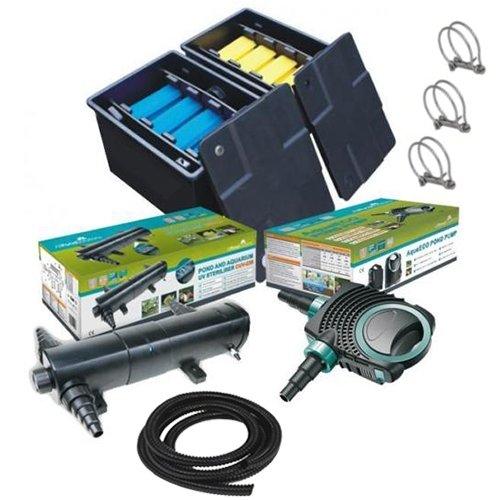

The All Pond Solutions 12000L Koi Pond Dual Bay Filter System is a complete box filtration system designed to run pond water through a variety of Filter Media and fine and coarse foams to keep your pond looking crystal clear.
This complete system includes the CUV-236 36w Sterilizer which attaches to the side of the CBF-350B filter box (or can be positioned close by) and the 10000PP 10000 litres per hour pond pump. The full pond kit also includes FREE 3x double wire clips and 10 metres of 32mm flexible hosing.
Filter Operation
The filtration system uses a variety of filter media distributed amongst two separate bays allowing you to filter high volumes of water.
Each of the 2 bay's has 4 different stages of filtration (see below) The first bay comes complete with four (4) Blue Coarse Filter Foam's, the remaining bay has four (4) Yellow Fine Filter Foam's included.
1) Firstly, the water passes through the filter media bay (stocked with media of your choice)
2) Then the water is guided through high-quality Japanese matting;
3) After matting, the water will flow through the filter foams provided;
4) The last section of each filter bay has additional room for filter media.
Please note the filter must be placed on the edge of the pond as the clean water flows straight back into the pond not an outlet pipe
All of our CBF pond filters come complete with an additional cleaning too that allows you to rinse through your pond foams without having to remove them from the filter box.
Features
- 1 x Dual Filter Box
- 2 x Clip-on Lid
- 2 x Inlet Pipes Size: 19mm - 38mm / 0.75" - 1.5"
- 1 x Outlet Pipe Size: 70mm / 27.6"
- 2 x Waste Pipe per Box (for easy draining of water waste)
- 1 x Temperature Dial Built into Lid
- 1 x Water Level Indicator Built into Lid (Ideal for Blockages / Cleaning)
- 4 x Blue Foams (Coarse Grade Foam)
- 4 x Yellow Foams (Fine Grade Foam)
Specifications
- 2 x Japanese Matting Included (Dimensions: 440 x 230 x 40mm Thickness / 17.3" x 9.1" x 1.6" Thickness)
- 20 x 1.75" / 44mm Bio Balls (Approx)
- Maximum Flow Rate: 10000L/H
- Suitable for Ponds with Heavy Stocked Koi up to: 6500 Litres
- Suitable for Ponds with Small Mix of Fish and Koi up to: 9000 Litres
- Suitable for Decorative Ponds up to 12,000 Litres volume
- Dimensions: 850 x 520 x 390mm / 33.5" x 20.5" x 15.4"
- Free 12 Months Warranty
Features
CUV-236 UV Steriliser
- CUV-236 Centre Panel Lights-up to Ensure that the UV is Operational
- Three Stepped Hosetails Supplied
- Wall Mounting Bracket Attached to the UV Light complete with Screws
- CUV-236 Easy Clip-release for Bulb / Quartz Glass Maintenance
- CUV-236 Advanced Thermal Heat Protection Built-in
AQUAECO-10000 Pond Pump
- High water flow with low energy consumption for energy conscious and environmentally friendly operation.
- Designed to pump dirty water 24/7
- High quality impeller and ceramic shaft for problem free transport of dirt particles.
- Robust filter housing minimises the risk of blockage and makes installation and maintenance easy.
- Unique cage design incorporating convenient handle for easy placement / retrieval
- Cage design allows for easy access for quick hassle free maintenance
- Inlet / Outlets can be angled to your requirements for a simple installation
- Inlet / Outlet hosetail connector: 25/32/38mm
- Power Cable: 10m
CUV-236 Specifications
- Power: 36W
- Suitable for Pond sizes up to 20,000 Litres
- Through Flow Sterilisation at 6000 L/H
- Length of UV Case 54 cm / 21.3"
- UV Bulb Included (1 x 36w)
- Max Pressure(bar) 0.3 90 %
- Power Cable 5m Length
- Inlet & Outlet Adapter 0.75", 1", 1.25", 1.5" / 19mm, 25mm, 32mm, 38mm
AQUAECO-10000 Specifications
- Model: AquaECO-10000
- Max flow rate - 10000L/H
- Wattage: 80w
- Max head - 6m
- Cable Length: 10m
- Free 12 Month Warranty
